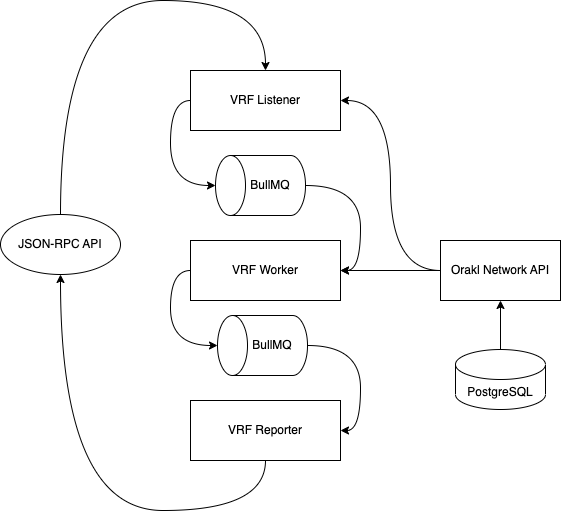

# Orakl Network VRF ## Description The **Orakl Network VRF** is one of the main Orakl Network solutions. It provides an access to provably random number generator. The code is located under [`core` directory](https://github.com/Bisonai/orakl/tree/master/core), and separated to three independent microservices: listener, worker and reporter. ## State Setup The **Orakl Network VRF** requires an access to state of listeners and VRF keys. ### Listener The **Orakl Network API** holds information about all listeners. The command below adds a single VRF listener to the Orakl Network state to listen on `vrfCoordinatorAddress` for `RandomWordsRequested` event. The `chain` parameter specifies a chain on which we expect to operate with the **Orakl Network VRF Listener**. ```sh orakl-cli listener insert \ --service VRF \ --chain ${chain} \ --address ${vrfCoordinatorAddress} \ --eventName RandomWordsRequested ``` * example ```sh orakl-cli listener insert --service VRF --chain baobab --address 0xDA8c0A00A372503aa6EC80f9b29Cc97C454bE499 --enventName RandomWordsRequested ``` ### Reporter The **Orakl Network API** holds information about all reporters. The command below adds a single VRF reporter to the Orakl Network state to report to `oracleAddress`. The chain parameter specifies a chain on which we expect to operate. Reporter is defined by an `address` and a `privateKey` parameters. ```sh orakl-cli reporter insert \ --service VRF \ --chain ${chain} \ --address ${address} \ --privateKey ${privateKey} \ --oracleAddress ${oracleAddress} ``` * example ```sh orakl-cli reporter insert \ --service VRF \ --chain baobab \ --address 0x12 \ --privateKey abc \ --oracleAddress 0xDA ``` ### VRF Keys To be able to run VRF as a node operator, one must have registered VRF keys in [`VRFCoordinator`](https://github.com/Bisonai/orakl/blob/master/contracts/src/v0.1/VRFCoordinator.sol), and VRF keys has to be in Orakl Network state as well. VRF worker will load them from the **Orakl Network API** when it is launched. If you do not have VRF keys, you can generate them with the **Orakl Network CLI** using the following command. ```sh orakl-cli vrf keygen ``` The output of generated command will be similar to the one below, but including the keys on the right side of the keys (`sk`, `pk`, `pkX`,`pkY`, and `keyHash`). VRF keys are generated randomly, therefore every time you call the `keygen` command, you receive a different output. `sk` represents a secret key which is used to generate the VRF `beta` and `pi`. This secret key should never be shared with anybody except the required personnel. ``` sk= pk= pkX= pkY= keyHash= ``` To store VRF keys in Orakl Network state use `orakl-cli vrf insert` command. Parameter `--chain` corresponds to the network name to which VRF keys will be associated. ```sh orakl-cli vrf insert \ --chain ${chain} \ --pk ${pk} \ --sk ${sk} \ --pkX ${pkX} \ --pkY ${pkY} \ --keyHash ${keyHash} ``` ## Configuration Before we launch the **Orakl Network VRF**, we must specify [several environment variables](https://github.com/Bisonai/orakl/blob/master/core/.env.example). The environment variables are automatically loaded from a `.env` file. * `NODE_ENV=production` * `CHAIN` * `PROVIDER_URL` * `ORAKL_NETWORK_API_URL` * `LOG_LEVEL` * `REDIS_HOST` * `REDIS_PORT` * `HEALTH_CHECK_PORT` * `SLACK_WEBHOOK_URL` The **Orakl Network VRF** is implemented in Node.js which uses `NODE_ENV` environment variable to signal the execution environment (e.g. `production`, `development`). [Setting the environment to `production`](https://nodejs.org/en/learn/getting-started/nodejs-the-difference-between-development-and-production) generally ensures that logging is kept to a minimum, and more caching levels take place to optimize performance. `CHAIN` environment variable specifies on which chain the **Orakl Network VRF** will be running, and which resources will be collected from the **Orakl Network API**. `PROVIDER_URL` defines an URL string representing a JSON-RPC endpoint that listener and reporter communicate through. `ORAKL_NETWORK_API_URL` corresponds to url where the **Orakl Network API** is running. The **Orakl Network API** interface is used to access Orakl Network state such as listener and VRF key configuration. Setting a level of logs emitted by a running instance is set through `LOG_LEVEL` environment variable, and can be one of the following: `error`, `warning`, `info`, `debug` and `trace`, ordered from the most restrictive to the least. By selecting any of the available options you subscribe to the specified level and all levels with lower restrictiveness. `REDIS_HOST` and `REDIS_PORT` represent host and port of [Redis](https://redis.io/) to which all **Orakl Network VRF** microservices connect. The default values are `localhost` and `6379`, respectively. The **Orakl Network VRF** does not offer a rich REST API, but defines a health check endpoint (`/`) served under a port denoted as `HEALTH_CHECK_PORT`. Errors and warnings emitted by the **Orakl Network VRF** can be [sent to Slack channels through a slack webhook](https://api.slack.com/messaging/webhooks). The webhook URL can be set with the `SLACK_WEBOOK_URL` environment variable. ## Launch Before launching the VRF solution, the **Orakl Network API** has to be accessible from the **Orakl Network VRF** to load VRF keys, and listener settings. After the **Orakl Network API** is healthy, launch the VRF service, which consists of listener, worker, and reporter microservices, with the command below. Microservices communicate with each other through the BullMQ - job queue. ```sh yarn start:core:vrf ``` Run in dev mode through the following command: ```sh yarn dev:core:vrf ``` It's also possible to run the microservices separately in any arbitrary order: ```sh yarn start:listener:vrf yarn start:worker:vrf yarn start:reporter:vrf ``` ## Quick launch with Docker From [orakl](https://github.com/Bisonai/orakl) repository's root, run the following command to build all images: ```bash docker-compose -f docker-compose.local-core.yaml build ``` Set wallet credentials, `ADDRESS` and `PRIVATE_KEY` values, in the [.core-cli-contracts.env](https://github.com/Bisonai/orakl/blob/master/dockerfiles/local-vrf-rr/envs/.core-cli-contracts.env) file. Keep in mind that the default chain is `localhost`. If changes are required, update `CHAIN` (other options being `baobab` and `cypress`) and `PROVIDER_URL` values. Note that if the chain is not `localhost`, `Coordinator` and `Prepayment` contracts won't be deployed. Instead, Bisonai's already deployed [contract addresses](https://github.com/Bisonai/vrf-consumer/blob/9b06ddd10b472d821878c9994463856664387c85/hardhat.config.ts#L60-L68) will be used. After setting the appropriate `.env` values, run the following command to start the VRF service: ```bash SERVICE=vrf docker-compose -f docker-compose.local-core.yaml up --force-recreate ``` **Note** that the current docker implementation is designed to run a single service, either `rr` or `vrf`, at a time. Therefore, it's highly recommended to add `--force-recreate` when running `docker-compose up` command. That will restart all containers thus removing all the modified data in those containers. Here is what happens after the above command is run: * `api`, `postgres`, `redis`, and `json-rpc` services will start as separate docker containers * `postgres` will get populated with necessary data: * chains * services * vrf keys * listener (after contracts are deployed) * reporter (after contracts are deployed) * migration files in `contracts/v0.1/migration/` get updated with provided keys and other values * if the chain is `localhost`: * `contracts/v0.1/hardhat.config.cjs` file gets updated with `PROVIDER_URL` * relevant coordinator and prepayment contracts get deployed ## Architecture

Orakl Network VRF
