Orakl Network Data Feed

Description

The Orakl Network Data Feed is one of the main Orakl Network solutions. The goal of the Orakl Network Data Feed is to provide frequent data updates from off-chain to on-chain. The data feed is created from a submission pool that is composed of most up-to-date values reported by verified node operators.
A single data feed is defined by a pair of an adapter and an aggregator, and can be accessed on-chain through a AggregatorProxy smart contract. The AggregatorProxy is an auxiliary contract that redirects read requests to Aggregator contract. The Aggregator contract holds all submissions from all node operators, and aggregated value that is served to consumers through AggregatorProxy contract.
Every data feed has configuration that describes the least frequent update interval called heartbeat, minimum deviation threshold (deviationTreshold), and minimum absolute threshold (absoluteThreshold). Data feed is updated in rounds which can be started by any of Orakl Network Data Feed node operators. Once the round is started, every node operator has to submit their latest observed value for the specific data feed. The first submitted transaction that opens a new round emits a NewRound event which is captured by the node operators running the Orakl Network Data Feed Listener microservice. The NewRound event includes a roundId value representing the ID of the newly started round. It is possible that Orakl Network Data Feed Worker is already processing the round of the same ID. If that is the case, listener will drop the request, otherwise it will be pass it to worker. The requests coming to the Orakl Network Data Feed Worker can include information about the round ID but does not have to.
  • If the worker request includes the roundId, worker only asks the Orakl Network API for the latest data feed value aggregated from all observed data sources.
  • If the worker request does not include the roundId (e.g. coming either due to heartbeat , deviationThreshold or absoluteTreshold), then the worker first asks Aggregator which round is currently open, and additionally it fetches the latest data feed value aggregate through the Orakl Network API .
After the worker knows which roundId it can report on, and after it has access to the latest value aggregate of data feed, it passes the job to the Orakl Network Data Feed Reporter. The reporter creates a transaction that contains the data accepted from worker, and reports it to the Aggregator contract. Lastly, the reporter creates a time delayed job to automatically start a next round in heartbeat milliseconds. If there exists any idle delayed job from previous submissions for the same data feed, it is replaced with the latest one.
The deviationThreshold and absoluteTreshold trigger events for a new data feed round are executed from the Orakl Network Fetcher.
The code is located under core directory, and separated to three independent microservices: listener, worker and reporter.

State Setup

The Orakl Network Data Feed requires an access to state of listeners, adapters and aggregators.

Listener

The Orakl Network API holds information about all listeners. The command below adds a single Aggregator listener to the Orakl Network state to listen on aggregatorAddress for NewRound event. The chain parameter specifies a chain on which we expect to operate with the Orakl Network Data Feed Listener.
orakl-cli listener insert \
--service Aggregator \
--chain ${chain} \
--address ${aggregatorAddress} \
--eventName NewRound

Reporter

The Orakl Network API holds information about all reporters. The command below adds a single Data Feed reporter to the Orakl Network state to report to oracleAddress. The chain parameter specifies a chain on which we expect to operate. Reporter is defined by an address and a privateKey parameters.
orakl-cli reporter insert \
--service DATA_FEED \
--chain ${chain} \
--address ${address} \
--privateKey ${privateKey} \
--oracleAddress ${oracleAddress}

Adapter & Aggregator

orakl-cli adapter insert \
--source ${adapterJsonFile}
orakl-cli aggregator insert \
--chain ${chain} \
--source ${aggregatorJsonFile}

Proxies (Optional)

The Orakl Network offers an optional proxy feature that allows data fetching through proxy resources. The following command adds a single proxy to the Orakl Network state. The chain parameter specifies the blockchain network on which the operation is expected to occur. It is essential to provide values for all three parameters: host, port, and protocol.
orakl-cli proxy insert \
--protocol ${protocol} \
--host ${host} \
--port ${port}

Configuration

Before we launch the Orakl Network Data Feed, we must specify several environment variables. The environment variables are automatically loaded from a .env file.
  • NODE_ENV=production
  • CHAIN
  • PROVIDER_URL
  • ORAKL_NETWORK_API_URL
  • LOG_LEVEL
  • REDIS_HOST
  • REDIS_PORT
  • HEALTH_CHECK_PORT
  • SLACK_WEBHOOK_URL
The Orakl Network Data Feed is implemented in Node.js which uses NODE_ENV environment variable to signal the execution environment (e.g. production, development). Setting the environment to production generally ensures that logging is kept to a minimum, and more caching levels take place to optimize performance.
CHAIN environment variable specifies on which chain the Orakl Network Data Feed will be running, and which resources will be collected from the Orakl Network API.
PROVIDER_URL defines an URL string representing a JSON-RPC endpoint that listener, worker, and reporter communicate through.
ORAKL_NETWORK_API_URL corresponds to url where the Orakl Network API is running. The Orakl Network API interface is used to access Orakl Network state such as listener, worker, and reporter configuration.
Setting a level of logs emitted by a running instance is set through LOG_LEVEL environment variable, and can be one of the following: error, warning, info, debug and trace, ordered from the most restrictive to the least. By selecting any of the available options you subscribe to the specified level and all levels with lower restrictiveness.
REDIS_HOST and REDIS_PORT represent host and port of Redis to which all Orakl Network Data Feed microservices connect. The default values are localhost and 6379, respectively.
The Orakl Network Data Feed does not offer a rich REST API, but defines a health check endpoint (/) served under a port denoted as HEALTH_CHECK_PORT.
Errors and warnings emitted by the Orakl Network Data Feed can be sent to Slack channels through a slack webhook. The webhook URL can be set with the SLACK_WEBOOK_URL environment variable.

Launch

Before launching the Data Feed solution, the Orakl Network API has to be accessible from the Orakl Network Data Feed to load listener and adapter-aggregator settings.
After the Orakl Network API is healthy, Data Feed microservices (listener, worker, reporter) can be launched in an arbitrary order. Microservices communicate with each other through the BullMQ - job queue.
yarn start:listener:data_feed
yarn start:worker:data_feed
yarn start:reporter:data_feed

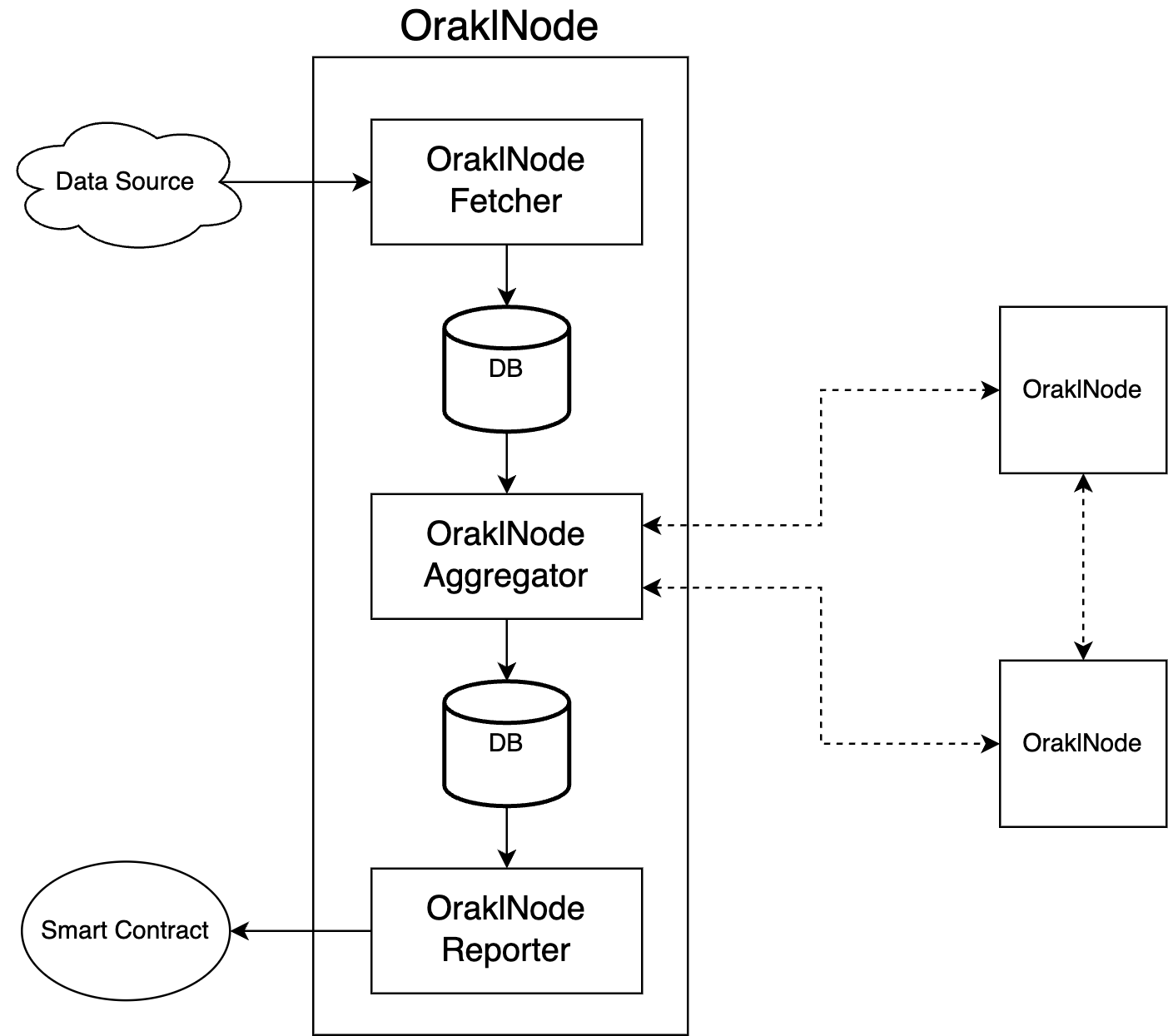

Architecture

Orakl Network Data Feed
